Driver's Door Lock Actuator Test

Remove the driver's door panel (see DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 2P connector (A) from the driver's door lock actuator (B).

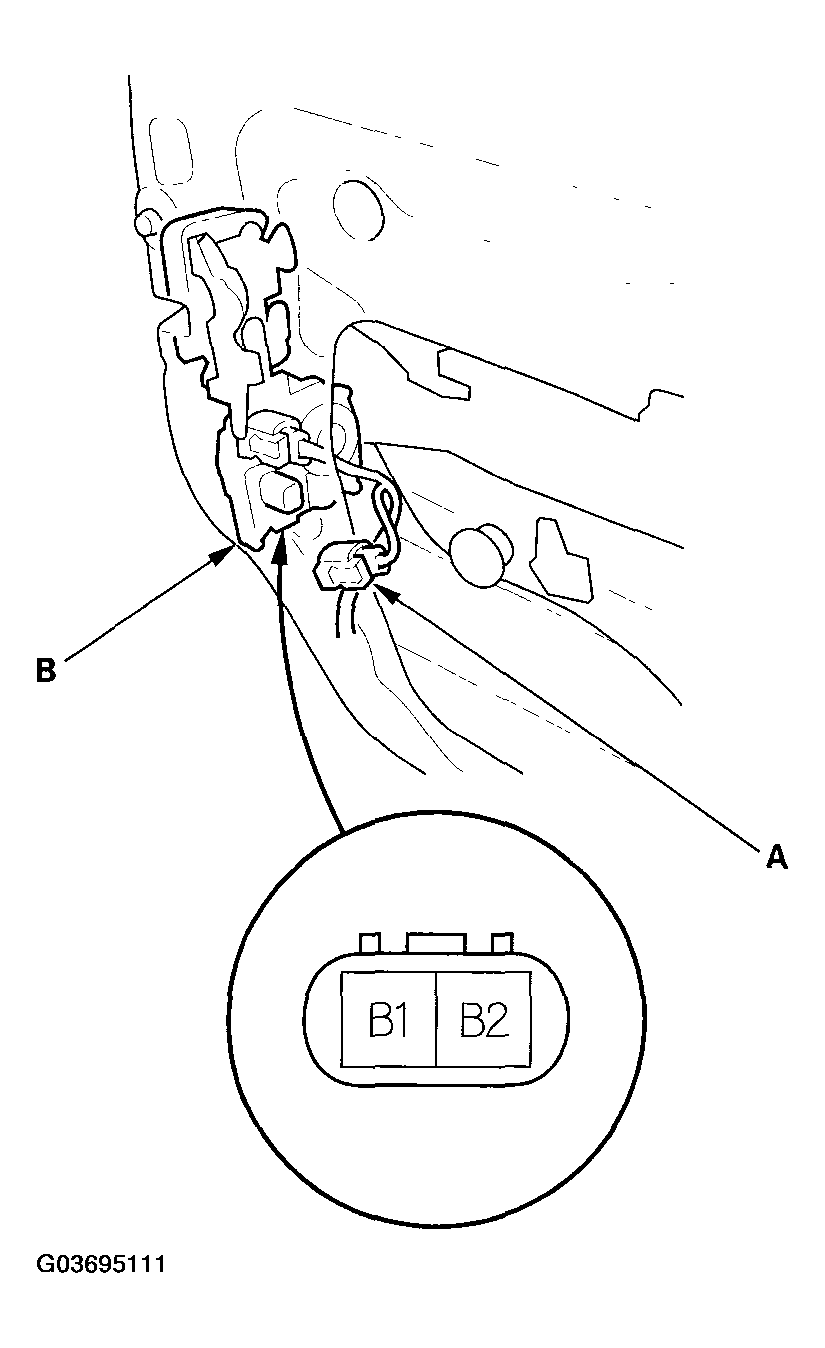

Fig 1: Disconnecting 2P Connector From Driver's Door Lock Actuator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check actuator operation by connecting power and ground according to the table below. To prevent damage to the actuator, apply battery voltage only momentarily.

Fig 2: Checking Actuator Operation By Connecting Power & Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the actuator does not operate as specified, replace the door lock actuator assembly.
