S2000 Base
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless/Power Door Locks/Security System
>>
Circuit Diagram
Circuit Diagram

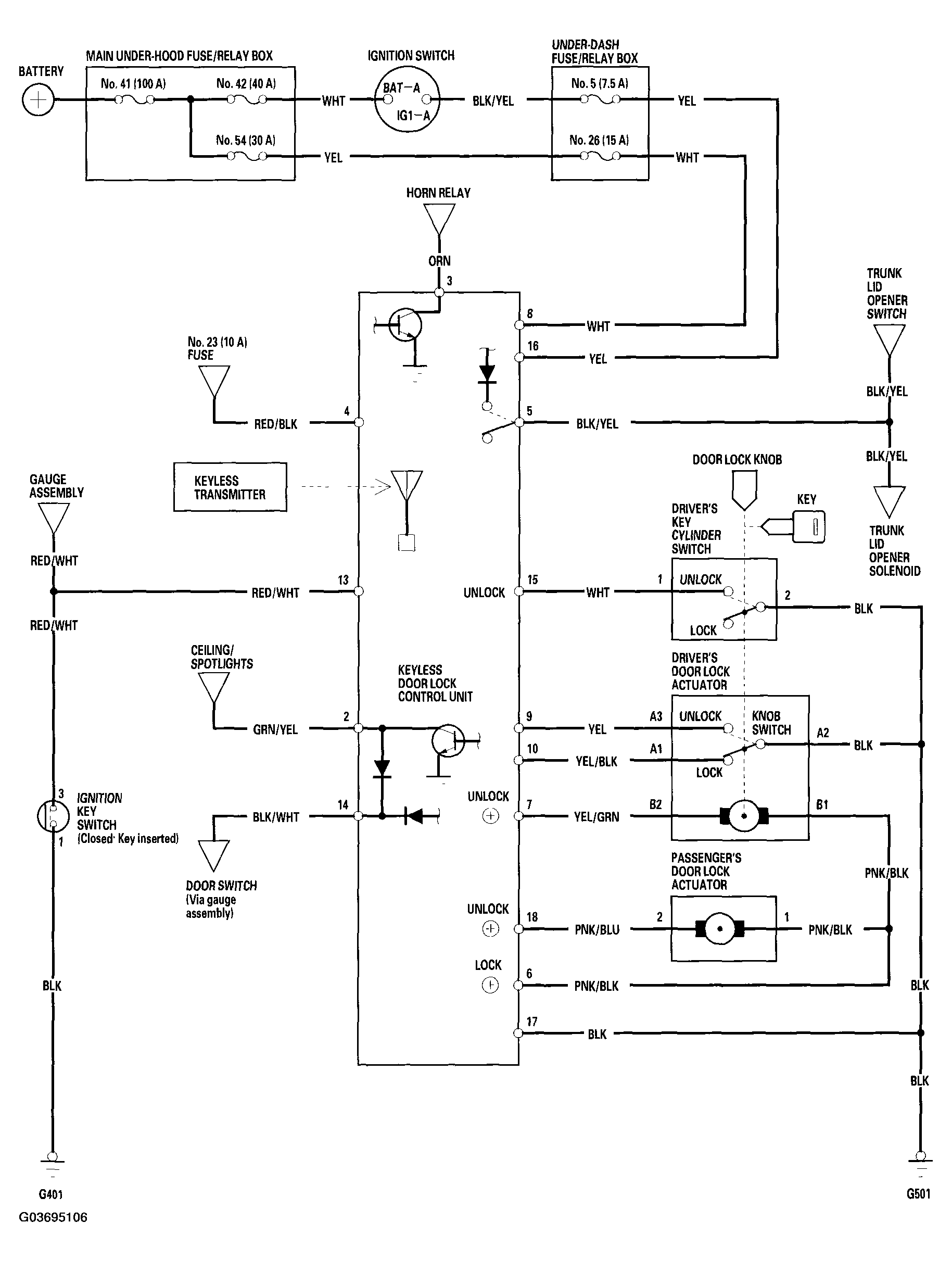

Fig 1: Identifying Keyless/Power Door Lock System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
