Clutch Pedal Position Switch Test

Disconnect the connector from the clutch pedal position switch, then remove the switch.

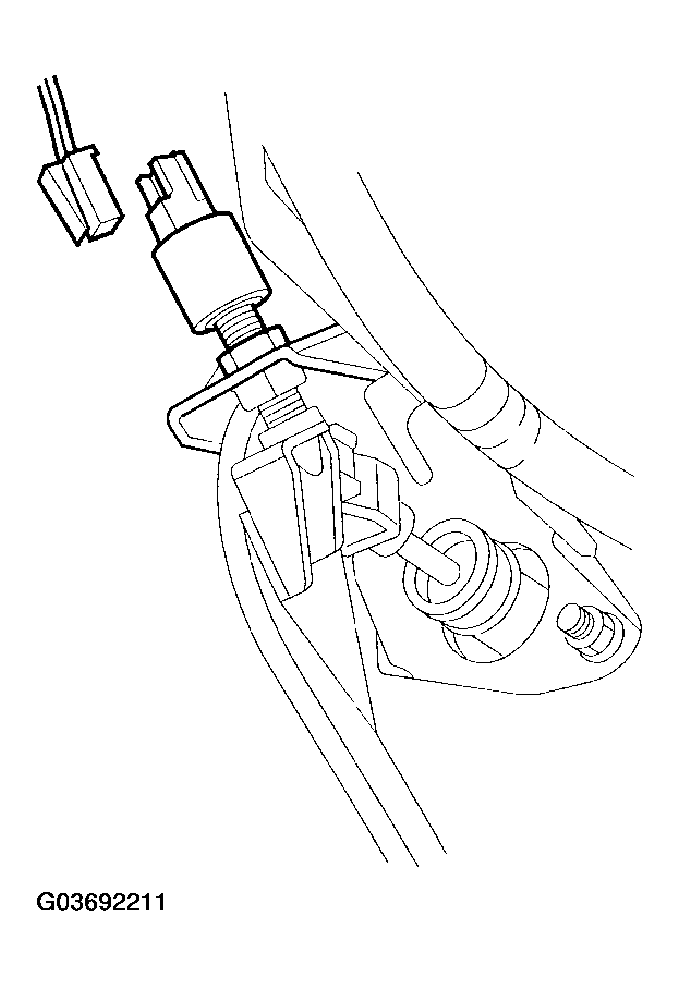

Fig 1: Disconnecting Connector From Clutch Pedal Position Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the clutch pedal position switch connector terminals. There should be no continuity between the terminals with the button (A) released, and there should be continuity with the button pressed.

Fig 2: Identifying Clutch Pedal Position Switch Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the clutch pedal position switch is faulty, replace it.
Install the clutch pedal position switch, and adjust it (see CLUTCH PEDAL, CLUTCH PEDAL POSITION SWITCH, AND CLUTCH INTERLOCK SWITCH ADJUSTMENT ).
