VSA Modulator-Control Unit Connector End View

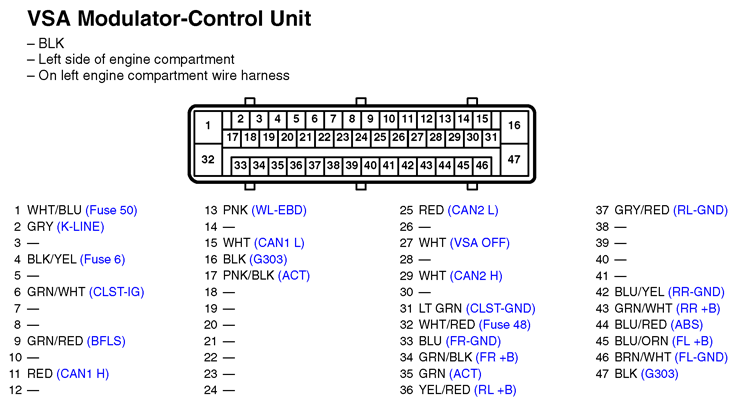

Fig 1: VSA Modulator-Control Unit Connector End View

G11250402

Courtesy of AMERICAN HONDA MOTOR CO., INC.
