Under-Dash Fuse/Relay Box Connector End View

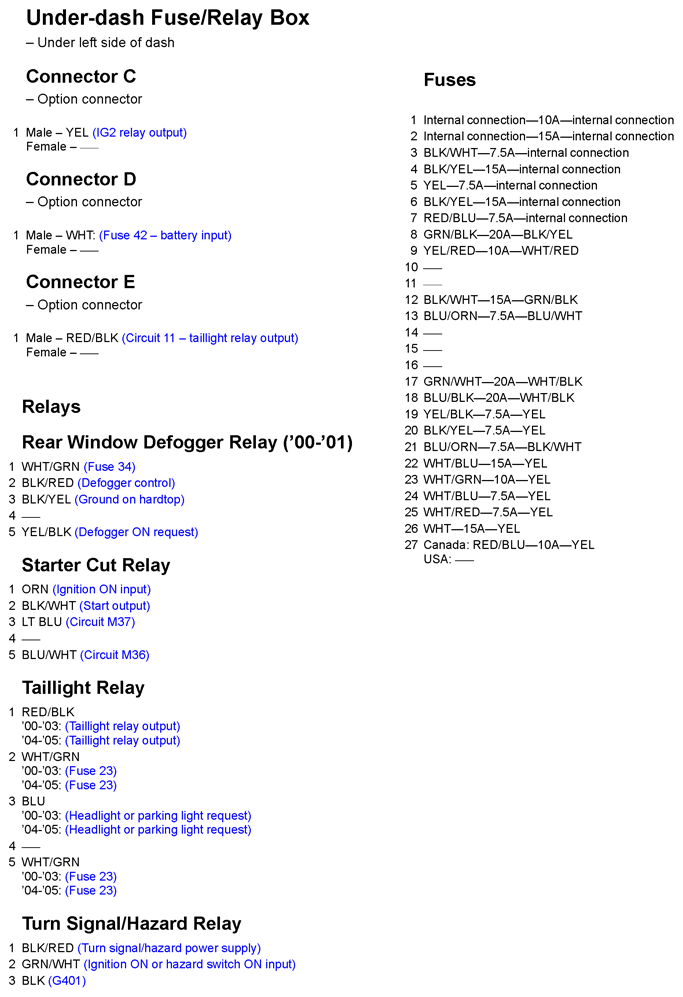

Fig 1: Under-Dash Fuse/Relay Box Connector End View

G11250210

Courtesy of AMERICAN HONDA MOTOR CO., INC.
