Throttle Actuator Control Module Relay Connector End View

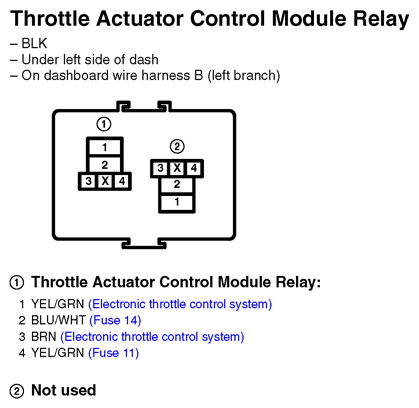

Fig 1: Throttle Actuator Control Module Relay Connector End View

G11250337

Courtesy of AMERICAN HONDA MOTOR CO., INC.
