Security Control Unit (Honda Accessory) Connector End View
Security Control Unit (Honda Accessory) Connector End View

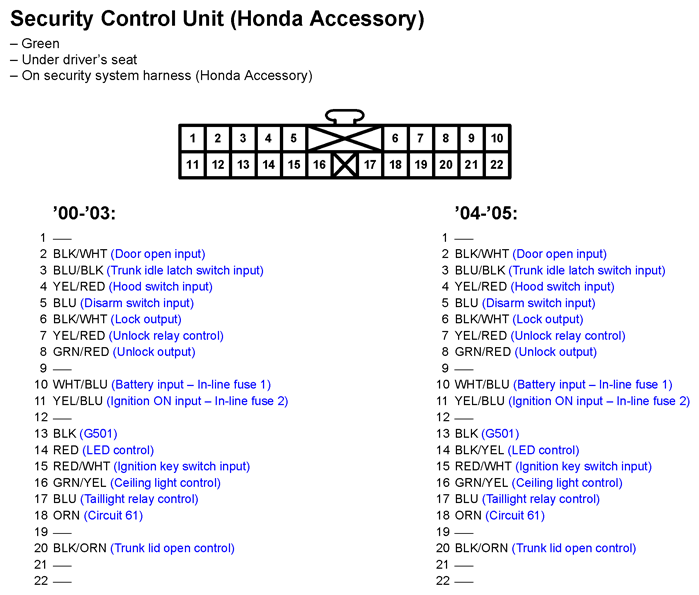

Fig 1: Security Control Unit (Honda Accessory) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
