Keyless Door Lock Control Unit Connector End View

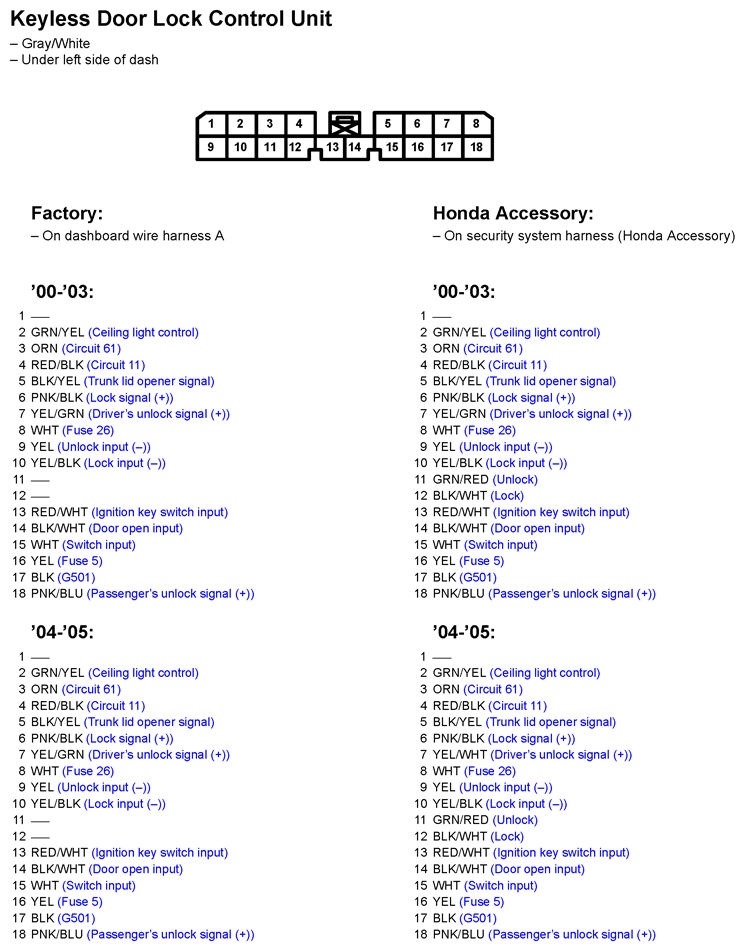

Fig 1: Keyless Door Lock Control Unit Connector End View

G11250186

Courtesy of AMERICAN HONDA MOTOR CO., INC.
