EPS Control Unit Connector End View
EPS Control Unit Connector End View

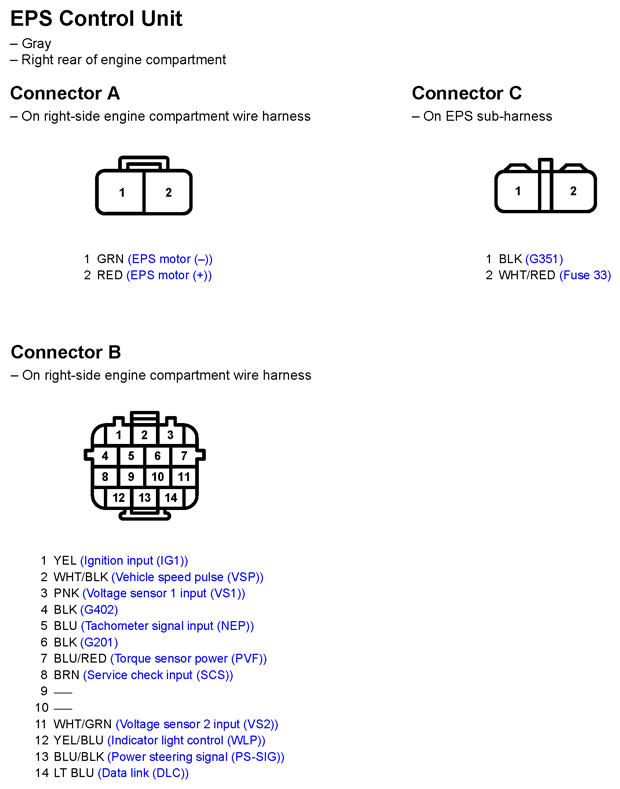

Fig 1: EPS Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
