Cruise Control Set/Resume/Cancel Switch Connector End View

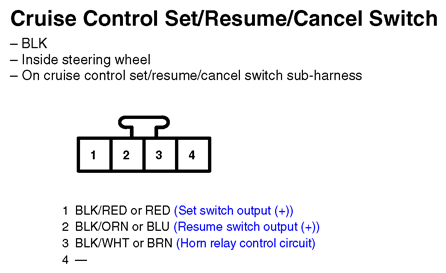

Fig 1: Cruise Control Set/Resume/Cancel Switch Connector End View

G11250333

Courtesy of AMERICAN HONDA MOTOR CO., INC.
