Accelerator Pedal Position (APP) Sensor

As the accelerator pedal position changes, the sensor varies the signal voltage to the ECM.

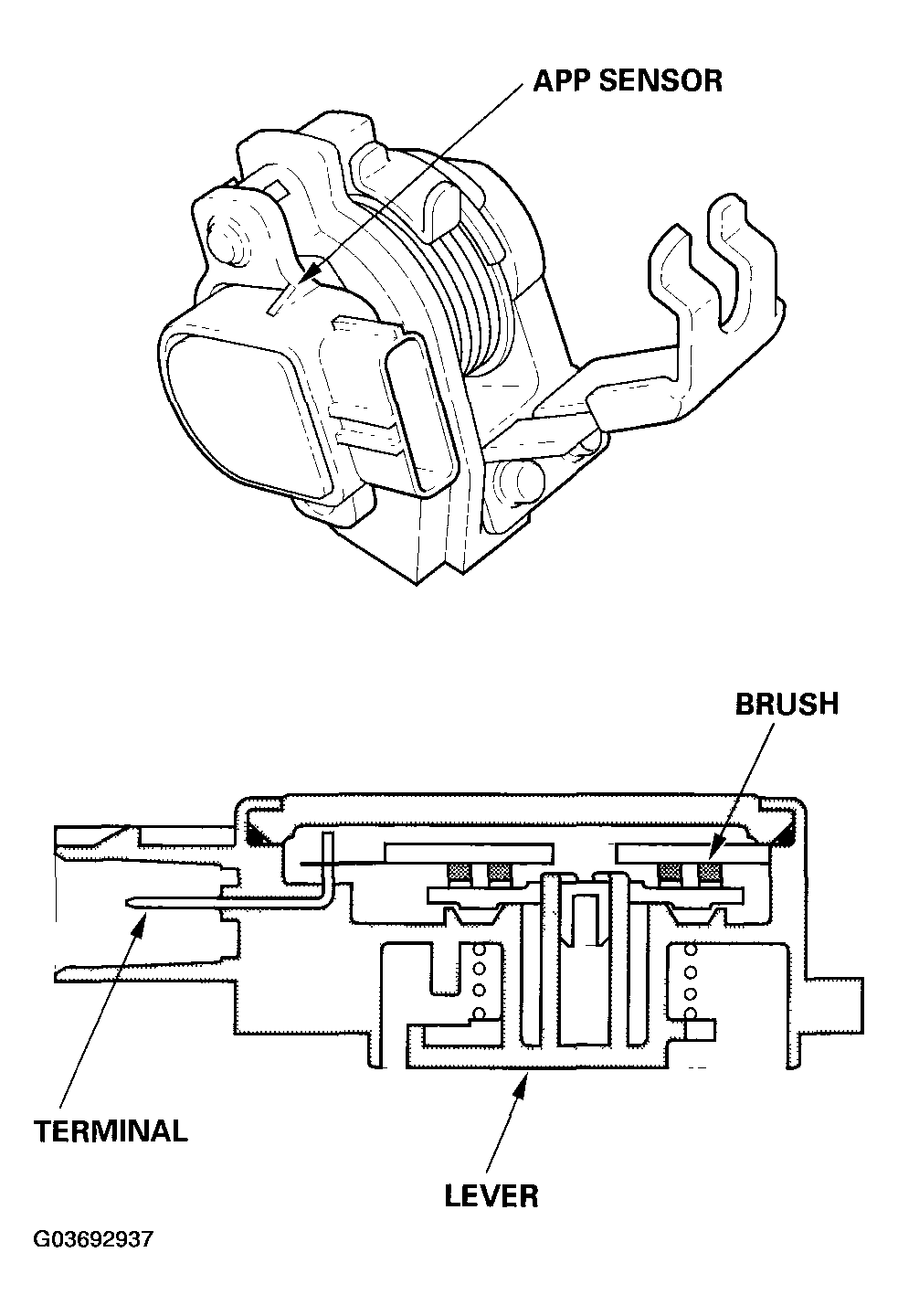

Fig 1: Identifying Accelerator Pedal Position Sensor
G03692937Courtesy of AMERICAN HONDA MOTOR CO., INC.
