VSA Modulator-control Unit Inputs and Outputs for 47P Connector (Connector Disconnected): Notes

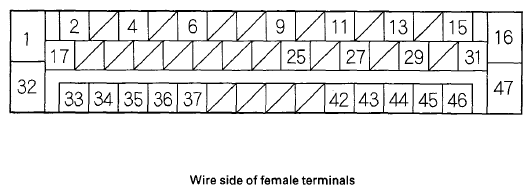

Fig 1: Identifying VSA Modulator-Control Unit 47P Connector Terminals
G06232127Courtesy of AMERICAN HONDA MOTOR CO., INC.
VSA MODULATOR-CONTROL UNIT REFERENCE

Terminal number Wire color Terminal sign Description Signal
1 WHT/BLU +B-P Power source for the pump motor Battery voltage (about 12 V) at all times
2 GRY K-LINE Communicates with HDS ---
4 BLK/YEL IG1 Power source for activating the system With ignition switch ON (II): battery voltage (about 12 V)
6 GRN/WHT CLST-IG Power source for the sensor cluster With ignition switch ON (II): battery voltage (about 12 V)
9 GRN/RED BFLS Detects brake fluid level switch With ignition switch ON (II), brake fluid level high: battery voltage (about 12 V) With ignition switch ON (II), brake fluid level low: 1.0 V or less
11 RED CAN1-H F-CAN communication circuit ---
13 PNK WL-EBD Drives brake system indicator With ignition switch ON (II): battery voltage (about 12 V)
15 WHT CAN1-L F-CAN communication circuit ---
16 BLK GND-V Ground for the VSA modulator-control unit Continuity to ground
17 PNK/BLK VSA Drives VSA indicator With ignition switch ON (II): battery voltage (about 12 V)
25 RED CAN2-L CAN2 communication circuit ---
27 WHT VSA OFF SW Detects VSA OFF switch signal
29 WHT CAN2-H CAN2 communication circuit
31 LT GRN CLST-GND Ground for the sensor cluster Continuity to ground
32 WHT/RED +B-V Power source for the fail-safe relay Battery voltage (about 12 V) at all times
33 BLU FRS (-) Detects right-front wheel speed sensor signal ---
34 GRN/BLK FRS (+)
35 CRN ACT Drives VSA activation indicator With ignition switch ON (II): battery voltage (about 12 V)
36 YEL/RED RLS (+) Detects left-rear wheel speed sensor signal ---
37 GRY/RED RLS (-)
42 BLU/YEL RRS (-) Detects right-rear wheel speed sensor signal
43 GRN/WHT RRS (+)
44 BLU/RED ABS Drives ABS indicator With ignition switch ON (II): battery voltage (about 12 V)
45 BLU/ORN FLS (+) Detects left-front wheel speed sensor signal ---
46 BRN/WHT FLS (-)
47 BLK GND-P Ground for the pump motor Continuity to ground
