Power Window Master Switch Connector End View (View 251)

• WHT
• Driver's door
• On driver's door wire harness

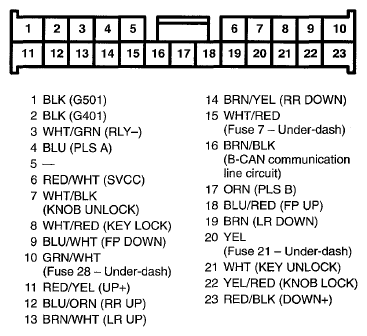

Fig 1: Power Window Master Switch Connector Terminal (View 251)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
