Power Mirror Switch Connector End View (View 238)

WHT
Driver's door
On driver's door wire harness

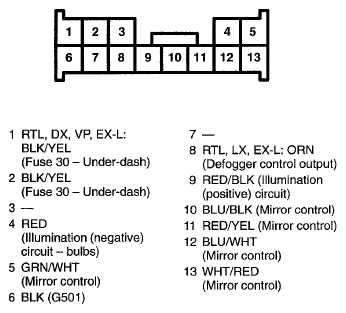

Fig 1: Power Mirror Switch Connector Terminal (View 238)

G07764144

Courtesy of AMERICAN HONDA MOTOR CO., INC.
