DTC P0983: Open in Shift Solenoid Valve D Circuit: Notes

Fig 1: Shift Solenoid Valve D - Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

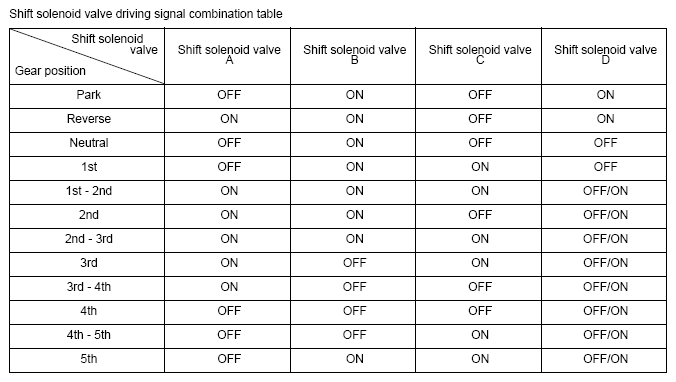

Shift solenoid valve driving signal combination table

Fig 2: Shift Solenoid Valve And Gear Position Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
