Oil Pump Overhaul: Removal
- Remove the bulkhead cover (see FRONT BULKHEAD COVER REPLACEMENT
).
- Remove the drive belt (see DRIVE BELT REPLACEMENT
).
- Remove the power steering (P/S) pump and the P/S line bracket (see step 6 on CYLINDER HEAD REMOVAL
).

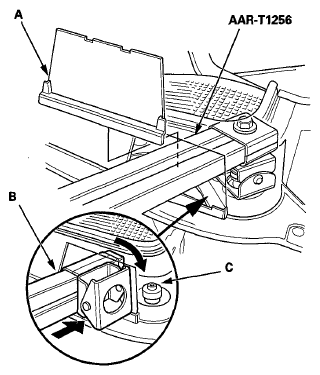

- Remove the cowl top side cover (A) from both sides.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- With the A and Reds engine support hanger (AAR-T1256) on its side, insert the hanger beam (B) through the opening, then rotate it over the damper (C).
- Install the engine support hanger (AAR-T1256) on to the vehicle as shown, and attach the hook (A) to the engine hanger (B). Tighten the wing nut (C) by hand, to lift and support the engine/transmission.
NOTE:
- Be careful when working around the windshield.
- Be careful not to damage the hood opener cable when installing the engine support hanger at the front bulkhead.
- AAR-T1256 two sets required for stacking additional cross section bar.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the timing belt (see TIMING BELT REMOVAL
).
- Remove the oil filter base/oil filter assembly (see step 8 on CRANKSHAFT AND PISTON REMOVAL
).
- Remove the oil pan (see OIL PAN REMOVAL
).
- Remove the oil strainer (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the mounting bolts, then remove the oil pump assembly (B).
