Honda
>>
2009
>>
Pilot Touring, 3.5 4
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Relays And Control Unit Locations
>>
Roof and Console
Roof and Console

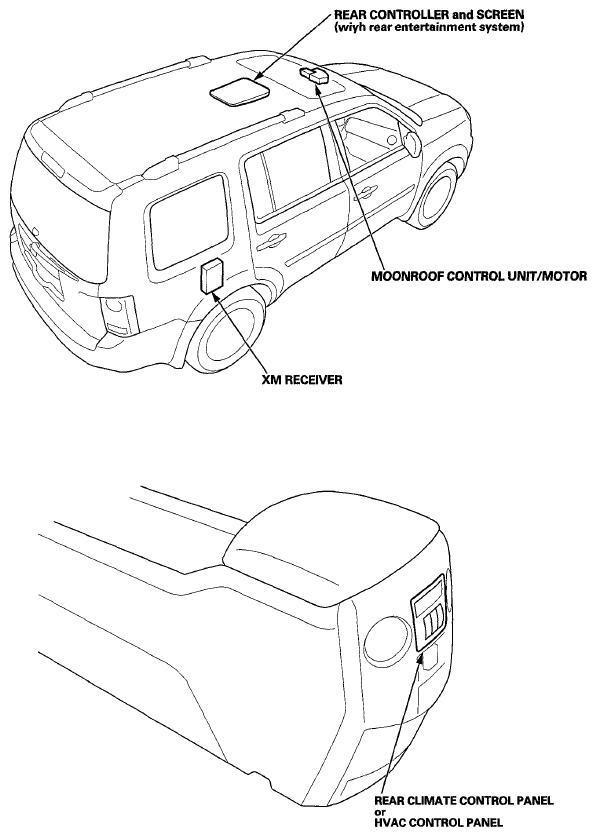

Fig 1: Identifying Relay And Control Unit Locations - Roof And Console
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
