Clear A/T DTCs Procedures

  1. Connect the HDS to the DLC (A) located under the driver's side of the dashboard.

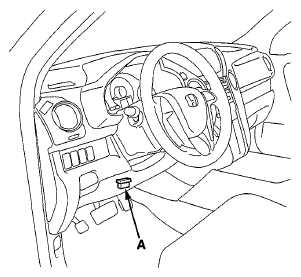

    Fig 1: Identifying Data Link Connector
    G05961562Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Turn the ignition switch to ON (II).
  3. Make sure the HDS communications with the PCM. If it does not, go to DLC CIRCUIT TROUBLESHOOTING .
  4. Clear the DTC(s) on the HDS screen.
