Backlash Inspection: 4WD

  1. Remove the final driven gear and transfer drive gear from the differential carrier.
  2. Install both axles into the differential assembly (A) and place the axles on V-blocks (B).

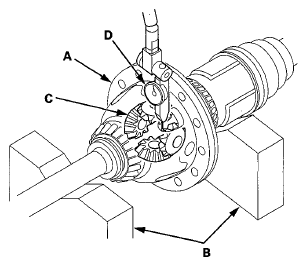

    Fig 1: Identifying Differential Assembly On V-Blocks (4WD)
    G05962198Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Measure the backlash of the pinion gears (C) with a dial indicator (D).

    Standard: 0.05-0.15 mm (0.002-0.006 in.)

  4. If the backlash is out of standard, replace the differential assembly.
  5. Install the final driven gear and transfer drive gear on the differential carrier (see DIFFERENTIAL CARRIER, FINAL DRIVEN GEAR, AND TRANSFER DRIVE GEAR REPLACEMENT  ).
