| 1 |
PTG MTR |
(40A) |

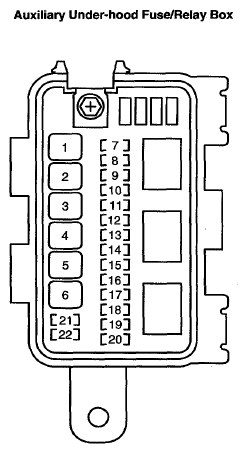

AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 1, 8, 9, AND 10 |
Power Tailgate Control Unit |
Power Tailgate |
| 2 |
VTM-4 |
(20A) |
AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 2, 5, 12, 16, 18, AND 19 |
VTM-4 Relay |
4WD |
| 3 |
TRAILER |
(30A) |
AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 3, 14, AND 17 AND REAR FUSE/RELAY BOX - 1, 2, 3, AND 4 |
Fuses 1, 2, 3, and 4 in Rear Fuse/Relay Box |
Trailer Connector |
| 4 |
VSA FSR |
40A |
AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 4, 6, 7, 11, 15, AND 20 |
VSA Modulator-Control Unit |
|
| 5 |
RR BLOWER |
30A |
AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 2, 5, 12, 16, 18, AND 19 |
Rear Blower Motor Relay |
|
| 6 |
VSA MTR |
30A |
AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 4, 6, 7, 11, 15, AND 20 |
VSA Modulator-Control Unit |
|
| 7 |
HAZARD |
15A |
AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 4, 6, 7, 11, 15, AND 20 |
Hazard Warning Switch, MICU |
|
| 8 |
PTG CLOSER |
(20A) |
AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 1, 8, 9, AND 10 |
Power Tailgate Control Unit |
Power Tailgate |
| 9 |
DR P/SEAT (REC) |
(20A) |
AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 1, 8, 9, AND 10 |
Driver's Power Seat Adjustment Switch (without DPMS), Power Seat Control Unit (DPMS) |
Driver's Power Seat |
| 10 |
DR P/SEAT (SLI) |
(20A) |
AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 1, 8, 9, AND 10 |
Driver's Power Seat Adjustment Switch (without DPMS), Power Seat Control Unit (DPMS) |
Driver's Power Seat |
| 11 |
STOP&HORN |
20A |
AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 4, 6, 7, 11, 15, AND 20 |
Brake Pedal Position Switch, MICU |
|
| 12 |
RR CON ACC SOCKET |
15A |
AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 2, 5, 12, 16, 18, AND 19 |
Console Accessory Power Socket B Relay |
|
| 13 |
RR WIPER |
10A |
AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 13, 21, AND 22 |
Rear Window Wiper Motor Relay 1 (Forward), Rear Window Wiper Motor Relay 2 (Backward) |
|
| 14 |
TRAILER E-BRAKE |
(20A) |
AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 3, 14, AND 17 AND REAR FUSE/RELAY BOX - 1, 2, 3, AND 4 |
Trailer Electric Brake Unit (If Equipped) |
|
| 15 |
AC INVERTER |
(20A) |
AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 4, 6, 7, 11, 15, AND 20 |
AC Inverter Unit |
AC Inverter |
| 16 |
CTR CON ACC SOCKET |
15A |
AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 2, 5, 12, 16, 18, AND 19 |
Console Accessory Power Socket A Relay |
|
| 17 |
TRAILER CHARGE |
(20A) |
AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 3, 14, AND 17 AND REAR FUSE/RELAY BOX - 1, 2, 3, AND 4 |
Trailer IG2 Relay |
Trailer Connector |
| 18 |
FR ACC SOCKET |
15A |
AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 2, 5, 12, 16, 18, AND 19 |
Front Accessory Power Socket Relay USA, Canada), Cigarette Lighter (Mexico, Latin America) |
|
| 19 |
RR ACC SOCKET |
15A |
AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 2, 5, 12, 16, 18, AND 19 |
Cargo Area Accessory Power Socket Relay |
|
| 20 |
G/H MTR |
20A |
AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 4, 6, 7, 11, 15, AND 20 |
Hatch Glass Relay |
|
| 21 |
RR HEATED SEAT |
(15A) |
AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 13, 21, AND 22 |
Left Second Row Seat Heater Relay (High), Left Second Row Seat Heater Relay (Low), Right Second Row Seat Heater Relay (High), Right Second Row Seat Heater Relay (Low) |
Second Row Seat Heaters |
| 22 |
H/LWASHER |
(30A) |
AUXILIARY UNDER-HOOD FUSE/RELAY BOX - FUSES 13, 21, AND 22 |
Not Used |
|
