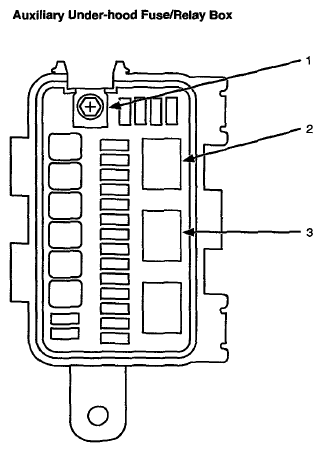

Connector-to-Fuse/Relay Box Index
| Ref | Socket | Cavities | Connects to | Notes |
|---|---|---|---|---|
| 1 | T5 | - | Starter Cable (see STARTER CABLE ) | |
| 2 | Rear Window Wiper Motor Relay 1 (Forward) | 5 | Left Engine Compartment Wire Harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS ) | |
| 3 | Rear Window Wiper Motor Relay 2 (Backward) | 5 | Left Engine Compartment Wire Harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS ) |
