Yaw Rate-Lateral/Longitudinal Acceleration Sensor Replacement

NOTE:
  • Do not damage or drop the sensor as it is sensitive.
  • Do not use power tools.
  1. Turn the ignition switch to LOCK (0).
  2. Remove the driver's center console trim (see step 2 on CENTER CONSOLE REAR TRIM REMOVAL/INSTALLATION ).
  3. Remove the yaw rate-lateral/longitudinal acceleration sensor (A) mounting bolts.

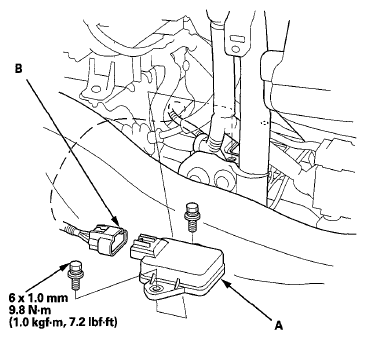

    4. Fig 1: Yaw Rate-Lateral/Longitudinal Acceleration Sensor & Mounting Bolts With Torque Specifications
    G05962999Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the yaw rate-lateral/longitudinal acceleration sensor 5P connector (B).
  5. Install the yaw rate-lateral/longitudinal acceleration sensor in the reverse order of removal.
  6. Do VSA SENSOR NEUTRAL POSITION MEMORIZATION  .
