Variable Cylinder Management (VCM) System
>>
Component Location index
Component Location index

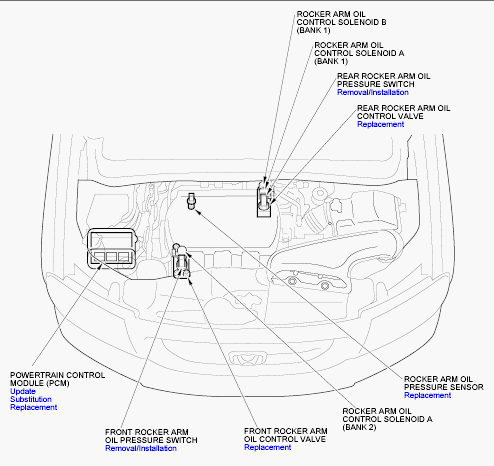

Fig 1: Identifying Variable Cylinder Management (VCM) System Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
