DTC P1743: Problem in Shift Control System; Shift Valve E Stuck OFF: Notes

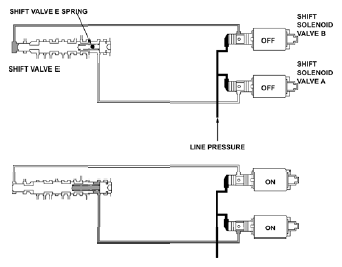

Fig 1: Shift Control System Operation Diagram (Shift Valve E Stuck Off)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

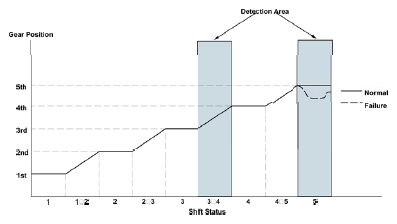

Fig 2: Shift Gear Position Graph

Courtesy of AMERICAN HONDA MOTOR CO., INC.

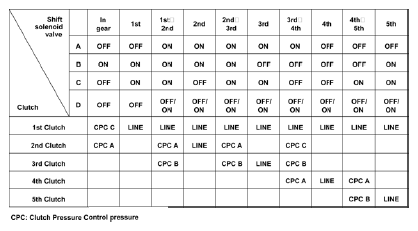

Fig 3: Shift Solenoid Valve And Clutch Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
