CKP Pulse Plate Replacement

  1. Remove the crankshaft (see CRANKSHAFT AND PISTON REMOVAL  ).
  2. Remove the CKP pulse plate (A).

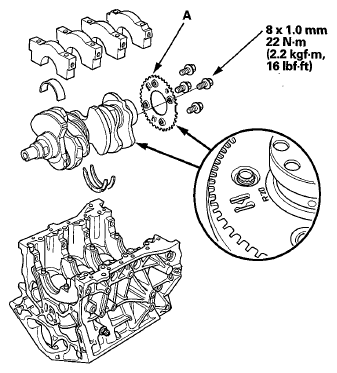

    Fig 1: CKP Pulse Plate With Torque Specifications
    G05961122Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the CKP pulse plate in the reverse order of removal.
