Engine Mount Control Unit Replacement

  1. Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION .
  2. Remove the passenger's dashboard undercover (see PASSENGER'S DASHBOARD TRIM REMOVAL/INSTALLATION ), and the right kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ).
  3. Disconnect the engine mount control unit 16P connector (A).

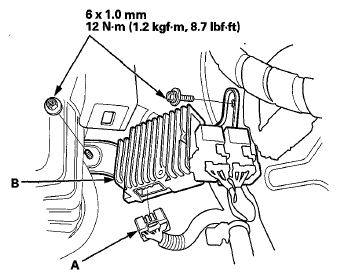

    Fig 1: Engine Mount Control Unit 16P Connector & Engine Mount Control Unit With Torque Specifications
    G05960815Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the engine mount control unit (B).
  5. Install the parts in the reverse order of removal.
  6. Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION
