Rocker Arm Oil Pressure Sensor Removal/Installation

  1. Remove the engine cover.
  2. Disconnect the rocker arm oil pressure sensor 3P connector (A).

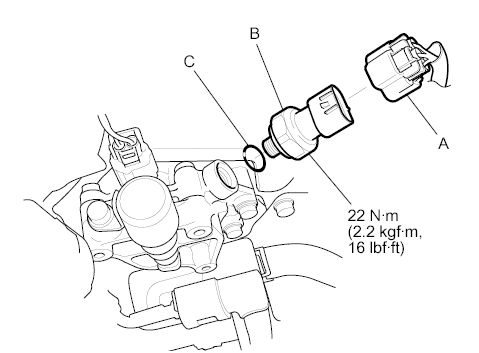

    Fig 1: Rocker Arm Oil Pressure Sensor Removal/Installation With Torque Specification
    G00492131Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the rocker arm oil pressure sensor (B).
  4. Install the parts in the reverse order of removal with a new O-ring (C).
