Driving Pattern

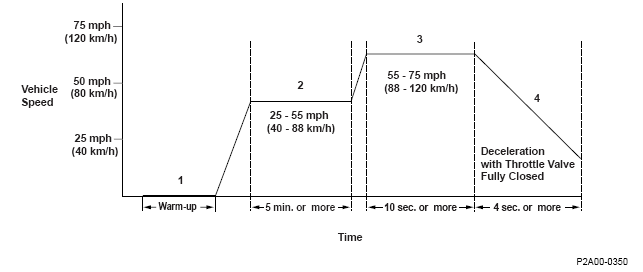

Fig 1: Vehicle Speed Driving Pattern
G00492870Courtesy of AMERICAN HONDA MOTOR CO., INC.
  1. Start the engine. Hold the engine speed at 3,000 rpm without load (A/T in P or N, M/T in neutral) until the radiator fan comes on.
  2. Drive the vehicle at a speed between 22-55 mph (40-88 km/h) for at least 5 minutes.
  3. Then, drive immediately at a steady speed between 55-75 mph (88-120 km/h) for at least 10 seconds.
  4. Decelerate with the throttle valve fully closed for at least 4 seconds.
