Driving Pattern

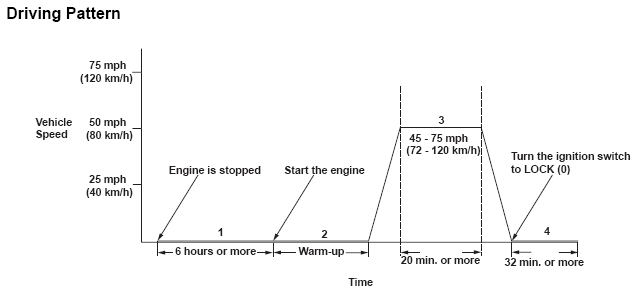

Fig 1: Identifying Driving Pattern
G00492864Courtesy of AMERICAN HONDA MOTOR CO., INC.
  1. After the vehicle has been left for an appropriate amount of time as specified, with the engine coolant temperature and intake air temperature within the specified range, start the engine.
  2. Warm up the engine at idle until the radiator fan comes on.
  3. Drive the vehicle immediately at a speed between 45 - 75 mph (72 - 120 km/h) for at least 20 minutes.
  4. After stopping the engine, turn the ignition switch to LOCK (0), and leave the vehicle in this condition for at least 32 minutes (EONV executes).
