Heater Control Panel (View 238)
Heater Control Panel (View 238)
GRN
Behind heater control panel
On dashboard wire harness A (left branch)

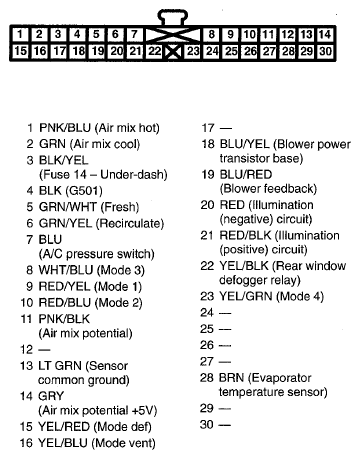

Fig 1: Heater Control Panel Connector Terminal (View 238)
