Injector Base Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
  2. Remove the power steering pump and the power steering hose bracket (see step 6 on CYLINDER HEAD REMOVAL ).
  3. Remove the intake manifold (see REMOVAL  ).
  4. Remove the injectors (see INJECTOR REPLACEMENT ).
  5. Remove the harness holder mounting bolt (A) and disconnect the knock sensor connector (B).
    Fig 1: Identifying Knock Sensor Connector And Harness Holder Mounting Bolt
    G06966544Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the injector base mounting bolts/nuts (A), then remove the front injector base (B) and the rear injector base (C).

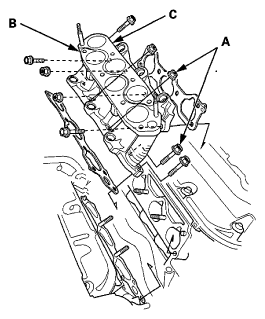

    Fig 2: Identifying Front And Rear Injector Base With Mounting Bolts/Nuts
    G06966545Courtesy of AMERICAN HONDA MOTOR CO., INC.
