Air Cleaner Removal/Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air intake scoop (see step 1 ).
Disconnect the MAF sensor/IAT sensor 5P connector (A).

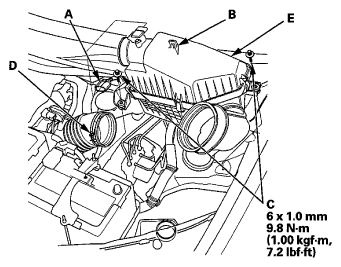

Fig 1: MAF Sensor/IAT Sensor Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the MAF sensor/IAT sensor harness from the air cleaner housing holder (B) and the bolts (C).
Loosen the clamp screw (D), then remove the air cleaner (E).
Install the parts in the reverse order of removal.
NOTE: When you tighten the clamp screw, refer to the throttle body removal/installation procedure (see THROTTLE BODY REMOVAL/INSTALLATION ).
