Water Pump Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine coolant (see COOLANT REPLACEMENT  ).
  2. Remove the timing belt (see TIMING BELT REMOVAL ).
  3. Remove the timing belt adjuster (see TIMING BELT ADJUSTER REPLACEMENT ).
  4. Remove the five bolts securing the water pump (A), then remove the water pump.

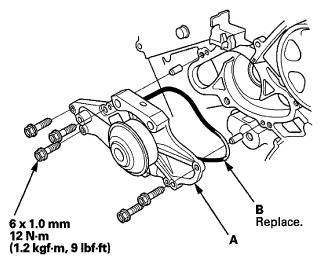

    Fig 1: Water Pump Bolts With Torque Specification
    G06966555Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Inspect and clean the mating surface of the engine block.
  6. Install the water pump with a new O-ring (B).
  7. Clean up any spilled engine coolant.
  8. Install the timing belt adjuster (see TIMING BELT ADJUSTER REPLACEMENT ).
  9. Install the timing belt (see TIMING BELT INSTALLATION ).
  10. Refill the radiator with engine coolant, and bleed the air from the cooling system (see COOLANT CHECK  ).
