Rear Brake Pad Inspection and Replacement: Inspection

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
Remove the rear wheels.
Check the thickness (A) of the inner pad (B) and the outer pad (C). Do not include the thickness of the backing plate.
Brake pad thickness:

Standard: 10.0 mm (0.394 in)

Service limit: 1.6 mm (0.063 in)

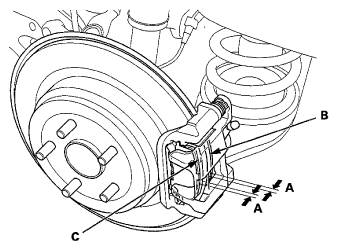

Fig 1: Checking Thickness Of Inner Pad And Outer Pad
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If any part of the brake pad thickness is less than the service limit, replace the brake pads as a set.
Clean the mating surfaces between the brake disc/drum and the inside of the wheel, then install the rear wheels.
