Rear Brake Disc Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Keep grease away from the brake disc/drum and the brake pads.

Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
Remove the rear wheel.
Release the parking brake.
Remove the brake hose mounting bolt (A).

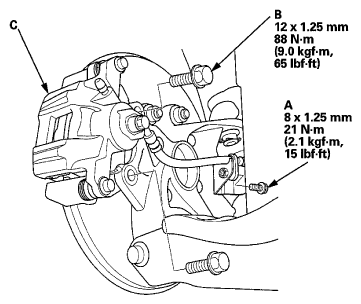

Fig 1: Brake Hose Mounting Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the brake caliper bracket mounting bolts (B), then remove the caliper assembly (C) from the knuckle. To prevent damage to the caliper assembly or brake hose, use a short piece of wire to hang the caliper assembly from the undercarriage. Do not twist the brake hose excessively.
Remove the brake disc/drum flathead screw (A).

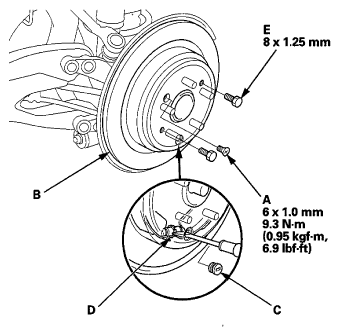

Fig 2: Brake Disc/Drum Flathead Screw With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the brake disc/drum (B) from the hub bearing unit.
NOTE:
- Remove the access plug (C), then if necessary, turn the adjuster nut (D) with a flat-tip screwdriver until the shoes become loose.
- If the brake disc/drum is stuck to the hub bearing unit, thread two 8 x 1.25 mm bolts (E) into the brake disc/drum to push it away from the hub bearing unit. Turn each bolt 90 degrees at a time to prevent the brake disc/drum from binding.
Install the brake disc/drum in the reverse order of removal, and note these items:
- Before installing the brake disc/drum, clean the mating surfaces between the hub bearing unit and the inside of the brake disc/drum.
- Adjust the parking brake (see PARKING BRAKE INSPECTION AND ADJUSTMENT ).
Inspect the brake disc/drum runout (see REAR BRAKE DISC INSPECTION ).
Clean the mating surfaces between the brake disc/drum and the inside of the wheel, then install the rear wheel.
