Parking Brake Switch Test

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If both the ABS/VSA indicator and the brake system indicator come on at the same time, check the VSA system for DTC's first (see GENERAL TROUBLESHOOTING INFORMATION ).

Disconnect the parking brake switch connector (A) from the parking brake switch (B).

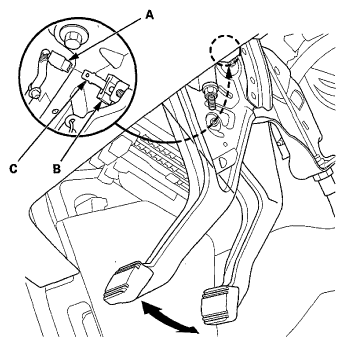

Fig 1: Identifying Parking Brake Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the switch terminal (C) and body ground.
- With the parking brake pedal pressed, there should be continuity.
- With the parking brake pedal released, there should be no continuity.
NOTE: If the parking brake switch and the brake fluid level switch are OK, but the brake system indicator does not function, do the gauge control module self-diagnostic function (see SELF-DIAGNOSTIC FUNCTION ).
Reconnect the parking brake switch connector.
