Master Cylinder Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not spill brake fluid on the vehicle; it may damage the paint. If brake fluid gets on the paint, wash it off immediately with water.
NOTE:
  • Press the brake pedal several times to deplete the vacuum in the brake booster.
  • Be careful when handling the master cylinder. Do not hold it at the piston, or the piston may separate from the body. If the piston separates from the body, then the master cylinder must be replaced. Do not reinsert the piston back into the master cylinder body.
  • Be careful not to damage or bend the brake lines during removal and installation.
  • After removal, plug the ends of the hoses and the joints to prevent spilling brake fluid.
  1. Remove the reservoir cap, then remove the brake fluid from the master cylinder reservoir with a syringe.
  2. Disconnect the brake fluid level switch connector (A).

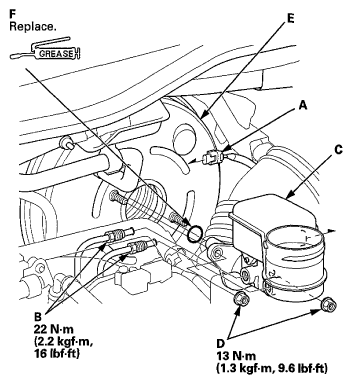

    Fig 1: Brake Master Cylinder, Fluid Level Switch Connector Lines, Mounting Nuts And Booster With Torque Specifications
    G06969710Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the brake lines (B) from the master cylinder (C). To prevent spills, cover the hose joints with clean rags or shop towels.
  4. Remove the master cylinder mounting nuts (D).
  5. Remove the master cylinder from the brake booster (E). Be careful not to bend or damage the brake lines when removing the master cylinder.
  6. Remove the O-ring (F) from the master cylinder.
    NOTE: Replace the O-ring whenever the master cylinder is removed.
  7. Install the master cylinder with a new O-ring in the reverse order of removal, and note these items:
    • Check the brake booster pushrod clearance (see BRAKE BOOSTER PUSHROD CLEARANCE ADJUSTMENT  ).
    • Coat the new O-ring with silicone grease (Shin-Etsu G40M).
    • Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.
    • Check the brake pedal height and free play after installing the master cylinder, and adjust it if necessary (see BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH ADJUSTMENT  ).
  8. Bleed the brake system (see BRAKE SYSTEM BLEEDING  ).
  9. Spin the wheels to check for brake drag.
