Brake Pedal Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the brake pedal position switch connector (A).

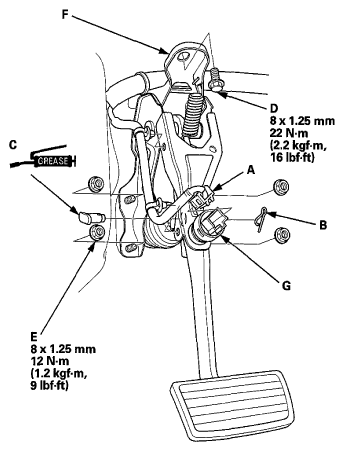

    Fig 1: Exploded View Of Brake Pedal With Torque Specifications
    G06969747Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the harness clips.
  3. Remove the lock pin (B) and the clevis pin (C).
  4. Remove the brake pedal bracket mounting bolt (D) and nuts (E).
  5. Remove the brake pedal with bracket (F).
  6. Remove the brake pedal position switch (G) by turning it 45° counterclockwise.
  7. Install in the reverse order of removal.
  8. Do the brake pedal and brake pedal position switch adjustment (see BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH ADJUSTMENT  ).
