Brake Hose Replacement: Front

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
Remove the front wheel.
Disconnect the brake line (A) from the brake hose (B), then remove the brake hose clip (C).

Fig 1: Identifying Brake Line And Brake Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.

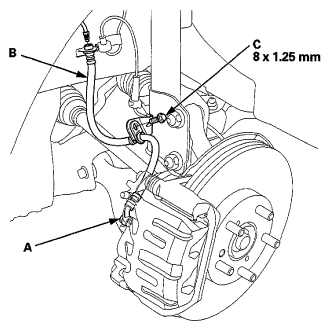

Remove the banjo bolt (A), and disconnect the brake hose (B) from the caliper body.

Fig 2: Identifying Banjo Bolt, Brake Hose And Mounting Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the brake hose mounting bolt (C), then remove the brake hose.

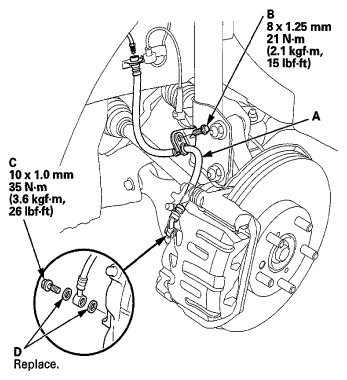

Install the brake hose (A) with the mounting bolt (B).

Fig 3: Brake Hose Mounting Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the brake hose to the caliper body with the banjo bolt (C) and new sealing washers (D).
Install the new brake hose clip (A) to the brake hose (B) on the bracket, then connect the brake line (C). Do not twist the brake hose.

Fig 4: New Brake Hose Clip To Brake Hose With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
After installing the brake hose, bleed the brake system (see BRAKE SYSTEM BLEEDING ).
Do the following checks:
- Check the brake hose and line joint for leaks, and tighten if necessary.
- Check the brake hoses for interference and twisting.
Clean the mating surfaces between the brake disc and the inside of the wheel, then install the front wheel.
