Master Cylinder Inspection

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Remove the master cylinder (see MASTER CYLINDER REPLACEMENT ).
Inspect and note these items:
- Before reassembling, check that all parts are free of dirt and other foreign particles.
- Do not try to disassemble the master cylinder assembly. Replace the master cylinder assembly with a new part, if necessary.
- Do not allow dirt or foreign matter to contaminate the brake fluid.

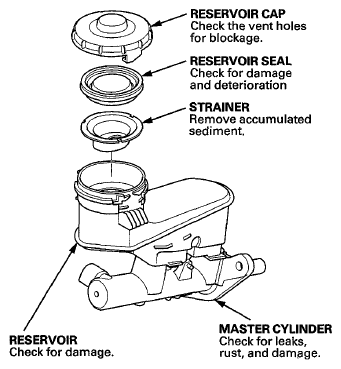

  Fig 1: Identifying Reservoir Cap, Reservoir Seal, Strainer, Reservoir And Master Cylinder
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the master cylinder (see MASTER CYLINDER REPLACEMENT ).
