Brake Hose Replacement: Rear

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
Remove the rear wheel.
Disconnect the brake line (A) from the brake hose (B), then remove the brake hose clip (C).

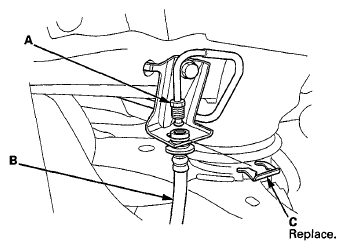

Fig 1: Identifying Brake Line, Brake Hose And Brake Hose Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the banjo bolt (A), and disconnect the brake hose (B) from the caliper.

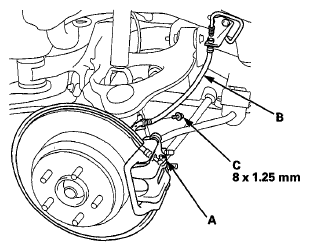

Fig 2: Identifying Banjo Bolt, Brake Hose And Brake Hose Mounting Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the brake hose mounting bolt (C), then remove the brake hose.
Install the brake hose (A) with the mounting bolt (B).

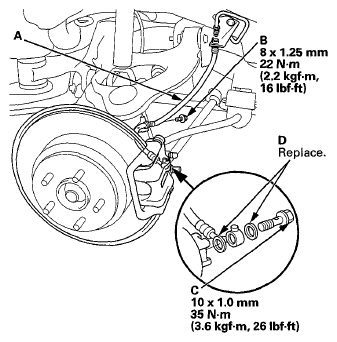

Fig 3: Brake Hose, Mounting Bolt, Banjo Bolt And Sealing Washers With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the brake hose to the caliper with the banjo bolt (C) and new sealing washers (D).
Install the new brake hose clip (A) to the brake hose (B) on the bracket, then connect the brake line (C). Do not twist the brake hose.

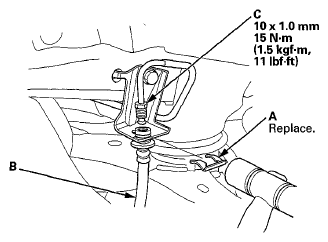

Fig 4: Brake Hose Clip, Brake Hose And Brake Line With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
After installing the brake hoses, bleed the brake system (see BRAKE SYSTEM BLEEDING ).
Do the following checks:
- Check the brake hose and line joint for leaks, and tighten if necessary.
- Check the brake hose for interference and twisting.
Clean the mating surfaces between the brake disc/drum and the inside of the wheel, then install the rear wheel.
