Stabilizer Link Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
  2. Remove the front wheel.
  3. Remove the self-locking nut (A) and the flange nut (B) while holding the respective joint pin (C) with a hex wrench (D), then remove the stabilizer link (E).

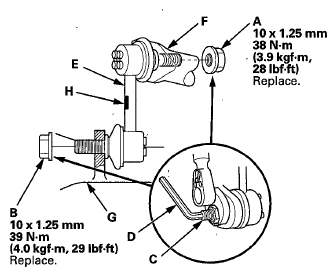

    Fig 1: Self-Locking Nut, Flange Nut, Joint Pin And Stabilizer Link With Torque Specifications
    G06419270Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the stabilizer link on the stabilizer bar (F) and the lower arm (G) with the joint pins set at the center of their range of movement.
    NOTE: The stabilizer link has a paint mark (H). The left stabilizer link is marked with yellow paint, and the right stabilizer link is marked with white paint.
  5. Install the new self-locking nut and the new flange nut, and tighten them to the specified torque while holding the respective joint pin with a hex wrench.
  6. Clean the mating surfaces of the brake disc and the inside of the wheel, then install the front wheel.
  7. Test-drive the vehicle.
  8. After 5 minutes of driving, tighten the self-locking nut again to the specified torque.
