Exploded View

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

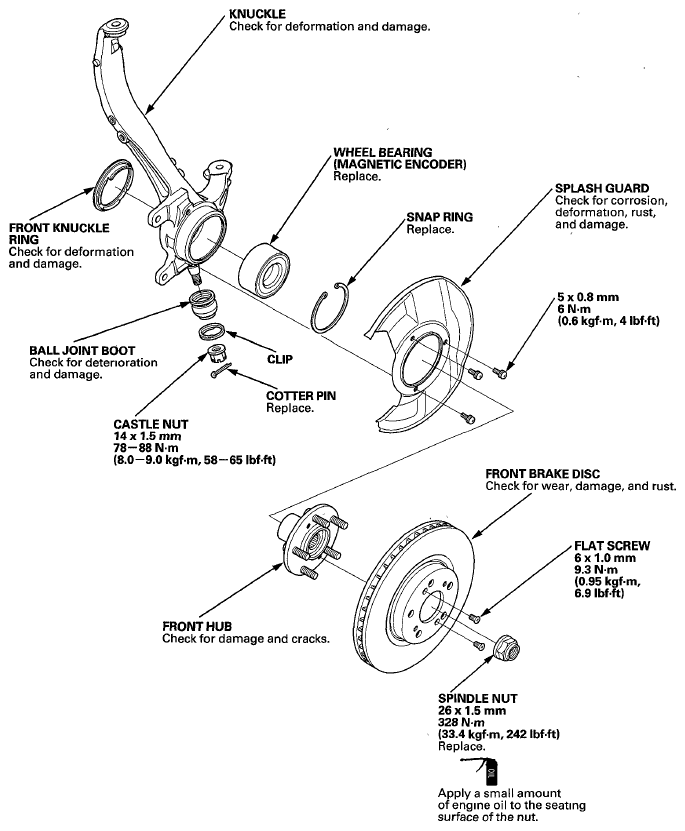

Fig 1: Exploded View Of Knuckle/Hub/Wheel Bearing With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Ball Joint Thread Protector, 14 mm 07AAE-SJAA100
Ball Joint Remover, 28 mm 07MAC-SL0A202
Ball Joint Thread Protector, 12 mm 07AAF-SDAA100
Ball Joint Thread Protector, 10 mm 07AAF-SECA120
Attachment, 72 x 75 mm 07746-0010600
Driver Handle, 15 x 135L 07749-0010000
Oil Seal Driver Attachment, 96 mm 07ZAD-PNAA100
Support Base 07965-SD90100

NOTE: Refer to the EXPLODED VIEW as needed during the following procedure.
