Accessory Power Socket Trim Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Take care not to scratch the center console or the related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).

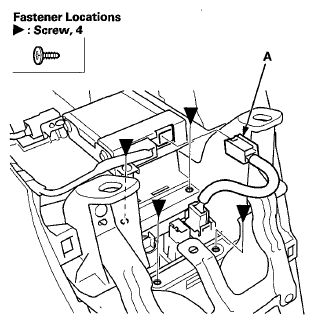

From under the console, disconnect the USB main harness connector (A) and remove the screws.

Fig 1: Identifying USB Main Harness Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Open the console armrest.

Fig 2: Identifying Accessory Power Socket Trim And Hook
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the trim in the reverse order of removal, and make sure the connector is plugged in properly.
