Connecting Rod Bearing Selection

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Each connecting rod falls into one of four tolerance ranges (from 0 to 0.024 mm (0.00095 in), in 0.006 mm (0.00024 in) increments) depending on the size of its big end bore.

It is then stamped with a number or bar (1, 2, 3, or 4/1, II, III, or IIII) indicating the range. You may find any combination of 1, 2, 3, or 4/1, II, III, or IIII in any engine.

Big End Bore Size: 58.0 mm (2.283 in)

Inspect the connecting rod for cracks and heat damage.

Big End Bore Code Locations

Numbers or bars have been stamped on the side of each connecting rod as a code for the size of the big end. Use them, and the letters or bars stamped on the crank (codes for rod journal size), to choose the correct bearings. If the codes are indecipherable because of an accumulation of dirt and dust, do not scrub them with a wire brush or scraper. Clean them only with solvent or detergent.

Fig 1: Identifying Big End Bore Code Locations

Courtesy of AMERICAN HONDA MOTOR CO., INC.

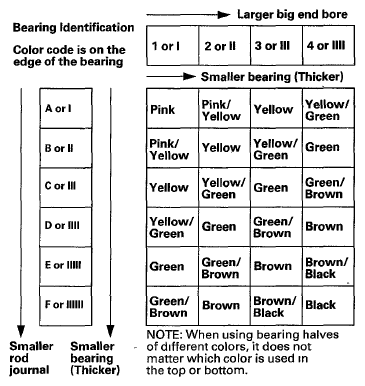

Fig 2: [Bearing Color Code Identification]

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connecting Rod Journal Code Locations (Letters or Bars)

Fig 3: Identifying Connecting Rod Journal Code Locations (Letters Or Bars)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
