EGR Valve Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover (see step 1 in IGNITION COIL AND SPARK PLUG REMOVAL/INSTALLATION ).
  2. Disconnect the EGR valve 5P connector (A).

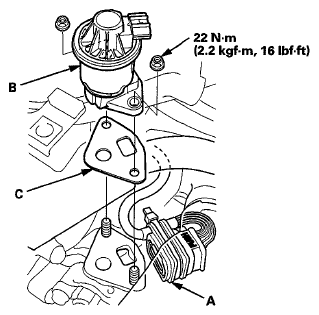

    Fig 1: EGR Valve 5P Connector With Torque Specifications
    G06422940Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the EGR valve (B).
  4. Install the parts in the reverse order of removal with a new gasket (C).
