EGR Pipe Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Install the EGR pipe (A) with new gaskets (B), then tighten the EGR pipe mounting bolts (C).

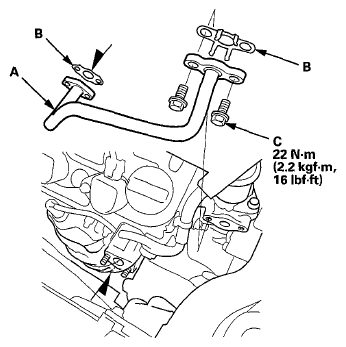

Fig 1: Identifying EGR Pipe, Gaskets And EGR Pipe Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Raise the vehicle on a lift.
Tighten the EGR pipe mounting nuts (A).

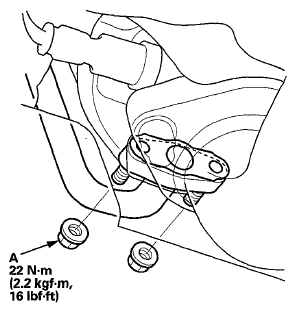

Fig 2: EGR Pipe Mounting Nuts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reinstall the engine undercover (see ENGINE UNDERCOVER REPLACEMENT ).
