Side Engine Mount Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

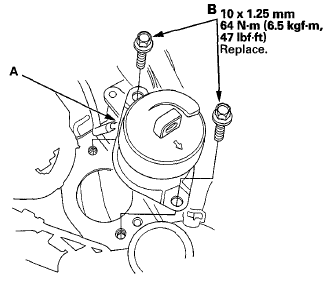

Install the side engine mount (A) using new bolts (B).

Fig 1: Identifying Side Engine Mount
Courtesy of AMERICAN HONDA MOTOR CO., INC.

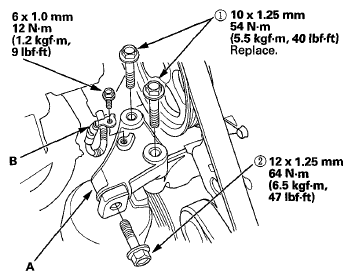

Loosely install the upper half of the side engine mount bracket (A) using new bolts and the bolt.

Fig 2: Identifying Side Engine Mount Bracket Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the ground cable (B).
Remove the jack and the wood block.
Tighten the mounting bolts in the numbered sequence shown.

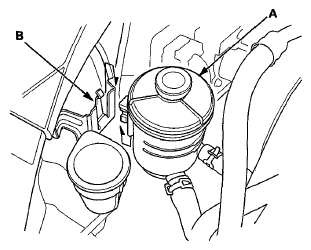

Install the power steering fluid reservoir (A) to the bracket (B).

Fig 3: Identifying Power Steering Fluid Reservoir And Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
