Power Relay Test: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

Relay Puller 07AAC-000A2A1

Use this chart to identify the type of relay, then do the test listed for it.

POWER RELAY REFERENCE

Relay

Test

A/C condenser fan relay

Normally-open four-terminal type

A/C compressor clutch relay

Blower motor relay

Cargo area accessory power socket relay⁽¹⁾

Console accessory power socket relay⁽¹⁾

Driver seat heater relay (high)*

ETCS control relay

Front accessory power socket relay

Horn relay

Ignition coil relay

PGM-FI main relay 1

PGM-FI main relay 2

PGM-FI subrelay

Rear window defogger relay

Seat heater relays (high)⁽¹⁾

Starter cut relay

Seat heater relays (low)⁽¹⁾

Five-terminal type

⁽¹⁾	Carefully remove the relay from the fuse/relay box using the relay puller. Do not use pliers. Pliers will damage the relay.

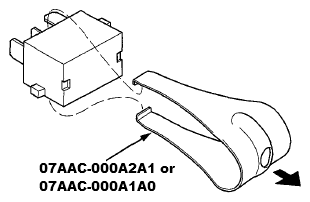

Fig 1: Removing Relay From Fuse/Relay Box Using Relay Puller

Courtesy of AMERICAN HONDA MOTOR CO., INC.
