Section 2 (General Information (V6)): Towing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

If the vehicle needs to be towed, call a professional towing service. Never tow the vehicle behind another vehicle with just a rope or chain. It is very dangerous.

Emergency Towing

There are three popular methods of towing a vehicle.

Flat-bed Tow Truck Equipment  - The operator loads the vehicle on the back of a flat-bed tow truck. This is the best way of transporting the vehicle.

To accommodate the flat-bed tow truck equipment, the vehicle is equipped with front towing hooks (A), front tie down hook slots (B), and rear tie down hook slots (C).

The towing hooks can be used with a winch to pull the vehicle onto the flat-bed tow truck, and the tie down hook slots can be used to secure the vehicle to the flat-bed tow truck.

NOTE: The Accord Crosstour is not equipped with a rear tow hook. Do not attach any towing devise to the rear bumper as it will cause serious damage. The rear bumper is not designed to support the vehicle's weight.

Front:

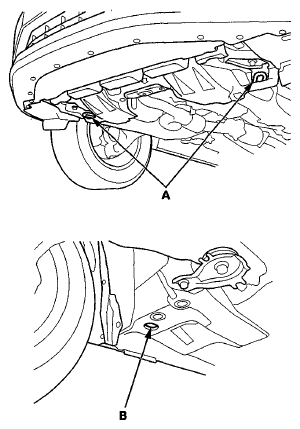

Fig 1: Identifying Front Towing Hooks And Front Tie Down Hook Slots
G06418848Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear:

Fig 2: Identifying Rear Tie Down Hook Slots
G06418849Courtesy of AMERICAN HONDA MOTOR CO., INC.

Wheel Lift Equipment  - The tow truck uses two pivoting arms that go under the tires (front or rear) and lifts them off the ground. The other two wheels remain on the ground. Never tow the vehicle with wheel lift equipment.

Sling-type Equipment  - The tow truck uses metal cables with hooks on the ends. These hooks go around parts of the frame or suspension, and the cables lift that end of the vehicle off the ground. The vehicle's suspension and body can be seriously damaged if this method of towing is attempted. This method of towing the vehicle is unacceptable.

The only recommended way of towing the vehicle is on a flat-bed tow truck. Towing the 4WD Accord Crosstour with only two wheels on the ground will damage parts of the 4WD system. The 2WD Accord Crosstour may also be towed with the front wheels off the ground, or with all four wheels on the ground.

If the 2WD Accord Crosstour cannot be transported by a flat-bed tow truck, it should be towed with the front wheels off the ground. If the vehicle is damaged, and must be towed with the front wheels on the ground, or if the vehicle is towed with all four wheels on the ground, do this:

It is best to tow the vehicle no farther than 50 miles (80 km), and keep the vehicle speed below 35 mph (55 km/h).

NOTE:
  • Improper towing preparation will damage the transmission. Follow the above procedure exactly. If you cannot shift the transmission or start the engine, the vehicle must be transported on a flat-bed tow truck.
  • Trying to lift or tow the vehicle by the bumpers will cause serious damage. The bumpers are not designed to support the vehicle's weight.
